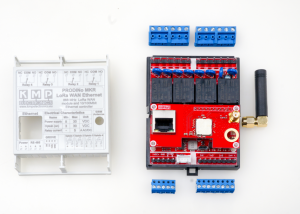

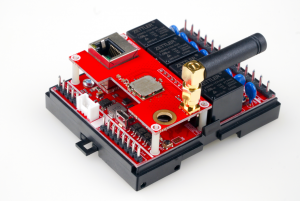

ProDino MKR Zero LoRa Ethernet V1

    If you find faster, modern and powerful Arduino board with Ethernet connection, a ProDino MKR Zero LoRa Ethernet V1 board is for you. You can do with it vary applications, it could be from home projects to industrial use. It also as a great educational tool for learning about 32-bit application development. The board is powered by Atmel’s SAMD21 MCU, which features a 32-bit ARM Cortex® M0+ core, Murata CMWX1ZZABZ module and W5500 Ethernet chip.
    477 views
    0 comments
    likes
    introduction
    • Are you developing projects for an environment where wireless connections are unavailable or would be inefficient? The ProDino MKR Zero Ethernet V1 allows you to have a wired Ethernet connection between your board and Internet. This is particularly important for projects that has to be installed in industrial environments with either electromagnetic noise or special safety requirements. It contains all futures on ProDino MKR Zero board plus Ethernet W5500 chip and LoRa WAN.
    features
    • ATSAMD21G18 Microprocessor, 32-Bit ARM Cortex® M0+
    • W5500 Ethernet chip
    • 1 x GROVE connector
    • 4 Relays Output
    • Pluggable connectors
    • 4 Optical Isolated Inputs
    • RS485 port
    • Switching Regulators
    • power supply
    • Arduino MKR WAN 1300 compatible
    technical details
    • mP, DC Current per I/O Pin 7 mA
    • Clock speed 48 MHz
    • SRAM 32 KB
    • 256 KB Flash Memory
    • Ethernet 802.3 10/100 Mbit/s
    • RS485 speed 500 Kbps (short distance)
    • Optical isolated digital Inputs: 4 (working voltage 3-30 V, On arrives form 3 V)
    • LoRaWAN module Murata  CMWX1ZZABZ
    • Relay outputs: 4 (maximum voltage/current 250V/5A)
    • Input Voltage: (Vin) 8 - 30 V
    • Dimension: 70 mm X 92 mm X 32 mm
    • Weight: 147 g
